Scan-to-BIM

Scan-to-BIM. Design from what’s there.

3D laser scan data converted into an accurate, design-ready Revit model of the existing building. For renovations, extensions, coordination and as-built documentation.

Quick answer Scan-to-BIM turns a point cloud of an existing building into a Revit or IFC model, at Level of Development 200 to 400 depending on the project. It is quoted per project, on floor area and the level of detail required.

Kybos can capture the site, or work from your existing point cloud.

Last updated

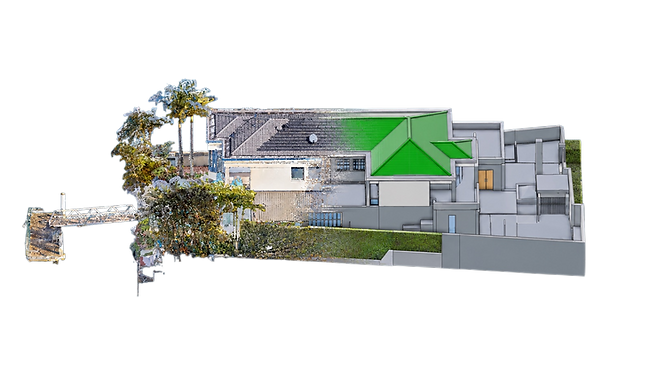

A point cloud becoming a BIM model
  • Revit · ArchiCADIFC delivered
  • LOD 200–400Level of detail
  • From scanCaptured or supplied
  • 24 hrQuote back
02Deliverable

What gets modelled.

01

Architectural

Walls, floors, ceilings, roofs, doors, windows, stairs and other agreed visible building elements.

02

Structural

Columns, beams, slabs, framing and other visible structural elements where included in the scope.

03

MEP / Services

Visible ducts, pipework, cable trays, equipment and services, where required.

RVT · IFC · E57 / RCP · Optional DWG / PDF

03Try it

From points to a model.

One home, as each step of the work has it: the point cloud the scanner records, the elements modelled over it, and the BIM model, where every wall, slab, window and roof is a named element with its own data.

Drag to turn the home.Swipe sideways to turn the home.

Illustration of the Lot 44 home. Real projects start from a capture of the building.

04From reality to Revit

Scan it. Model it. Design from it.

Point cloud of an existing building
Point cloud
Revit BIM model built from the point cloud
Revit model
05Why scan-to-BIM

Stop designing from drawings you can’t trust.

  1. 01Start with the actual building
  2. 02Design from measured reality
  3. 03Coordinate new work against existing conditions
01 / 03
Start with the actual building

Start with the actual building

Old drawings rarely match what was built. A model from measured scan data starts the design from the building as it stands.

02 / 03
Design from measured reality

Design from measured reality

Dimensions and spatial relationships can be checked against the captured data instead of repeatedly sending someone to site.

03 / 03
Coordinate new work against existing conditions

Coordinate new work against existing conditions

Design teams position new architecture, structure and services against measured existing geometry, before construction begins.

06Level of development

Modelled to the detail you need.

LOD 200

General existing geometry

For feasibility, planning and early design.

LOD 300

Measured existing geometry

For architectural design, documentation and coordination.

LOD 350

Detailed interfaces & coordination

Where connections and relationships between elements need to be represented.

Model scope, element categories and required LOD are agreed before modelling begins. LOD describes what is modelled; required geometric tolerance is agreed separately for each project.

07Capture in-house?

Own the scanner, not just the scan.

Kybos also supplies professional Realsee and XGRIDS capture systems, and remains available for BIM modelling when required.

Explore 3D scanners
A handheld scanner with its tablet
08Questions

Plain answers.

01What is Scan-to-BIM?

Scan-to-BIM converts 3D laser scan data of an existing building into a native BIM model, usually in Revit. It gives your design team an accurate existing-conditions model to open, edit and design over, instead of working from old or unreliable drawings.

02What does a Scan-to-BIM model include?

The scope is agreed per project. Typically architectural elements (walls, floors, ceilings, roofs, doors, windows, stairs), structural elements where required (columns, beams, slabs), and visible services and MEP where needed. You receive native Revit geometry, not just a point cloud.

03Can you work from a point cloud supplied by my surveyor or scanner?

Yes. Kybos can capture the site, or model from your existing registered scan data in E57, RCP, RCS, LAS or other compatible formats. Supplied-data modelling is quoted separately, so this works anywhere in Australia.

04What file formats do you deliver?

Native Revit (.rvt) and IFC as standard, with ArchiCAD (.pln) on request, plus the supporting point cloud (E57, RCP). Optional 2D DWG and PDF extraction on request.

05How accurate is a Scan-to-BIM model?

The model is built from measured scan data, so it reflects the building as captured. Required tolerance is set per project and agreed up front. Scan-to-BIM is for documentation and design; it isn’t certified survey data, and where certified survey control is required Kybos works alongside a registered surveyor.

06How much does Scan-to-BIM cost?

It depends on building size, model scope and the Level of Development required. Send the plans or site details and you’ll get a quote back within 24 hours.

09Coverage
Serving the construction industry across Australia, the South Pacific and beyond. Select a location to start an enquiry.

Got an existing building to model?

Send the plans or site details and you’ll get a quote back within 24 hours.
