XGRIDS · ENTERPRISE SLAM LIDAR IN STOCK
Lixel L3
Accuracy meets photorealism.
The Xgrids Lixel L3 is the new flagship handheld SLAM scanner: 5mm relative accuracy, built-in survey-grade RTK, and a three-camera 4K HDR true-colour system, with the RTK, the screen and the processing all inside the unit. One walk delivers a survey-grade point cloud, a photoreal 3D Gaussian Splatting scene and a mesh. Available to order in Australia through Kybos.
2cm
RELATIVE ACCURACY
5mm
RELATIVE ACCURACY
3x 50MP 4K HDR
CAMERAS
2.5KG
WITH BATTERY
L3 vs L2 Pro
Precision, or range and mounting.
The L3 doesn't replace the L2 Pro. The L3 leads on accuracy, colour and integration; the L2 Pro stays the long-range, mount-anything workhorse. Two tools for different jobs.
Precision, Scan-to-BIM, integration
Corridors, large sites, mounted
Fast, light, everyday capture
The L2 Pro is the only model with a 300m LiDAR option and vehicle / drone mounting. The K2 is the light everyday scanner for fast, portable capture. Each stays the right tool for its job.
SEE WHAT IT CAPTURES
See a L3 video.
WHAT IT IS
The camera.
The Xgrids Lixel L3 is the new flagship handheld SLAM scanner: 5mm relative accuracy, built-in survey-grade RTK, and a three-camera 4K HDR true-colour system, with the RTK, the screen and the processing all inside the unit. One walk delivers a survey-grade point cloud, a photoreal 3D Gaussian Splatting scene and a mesh. Available to order in Australia through Kybos.
WHO IT'S FOR
The buyer.
For surveying, Scan-to-BIM, infrastructure, facility and asset capture, mining and film: anyone who needs survey-grade accuracy and photoreal colour from a single handheld pass, with control points, RTK and on-device processing built in.
SPECIFICATIONS
The details.
PHYSICAL
BODY WEIGHT
~2.5kg (incl. battery)
​
DIMENSIONS
206 × 107 × 329 mm
HOUSING
Aluminium alloy · IP54
WORKING TEMPERATURE
−20°C to 50°C · <30W
LIDAR SYSTEM
LASER CLASS
Class 1 / 905nm
SCANNING RANGE
0.7-120m
​
FIELD OF VIEW
360° × 270°
POINT RATE
320,000 / 640,000 points/second
ACCURACY
5mm relative / 2 cm Absolute
CAMERA SYSTEM
CONFIGURATION
3 × 1/1.3" CMOS · 2 panoramic + 1 forward
​
IMAGE RESOLUTION
4096 × 3072 · DCG 4K HDR
​
Forward FOV
100° × 85°â€‹
​
PANO FIELD OF VIEW
200° × 200° (each panoramic)
POWER
BATTERY
14.4V 3,350mAh quick-swap
​
OPERATING TIME
~100 min continuous scanning
BATTERY CAPACITY
46.8 Wh
OPERATING TEMP
-20°C to 50°C
CONNECTIVITY & STORAGE
DATA INTERFACE
USB 3.1 Gen 2
INTERNAL STORAGE
1TB UFS
​

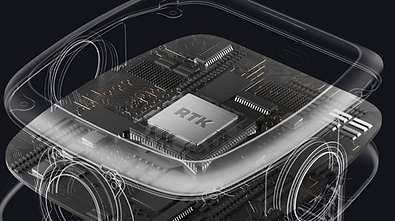

RTK
Built-in survey-grade · BDS, GPS, GLONASS, Galileo, QZSS
​
DISPLAY
4.3" TFT · up to 1,000 nits
OUTPUT & SOFTWARE
ON-DEVICE
Loop closure · levelling · moving-object removal · noise filtering
​
PROCESSING
LixelStudio · local upsampling (POI) · control-point-free fusion
​
EXPORT
.las / .rcp / .e57 / .ply / .ilas
MESH & 3DGS
.osgb / .obj · .lcc / .lcc2 / .ply · 3D Tiles / .usd
INTEGRATION
Revit (Scan-to-BIM) · Unreal Engine · Unity · ArcGIS · NVIDIA Isaac Sim
​
SOFTWARE INCLUDED
LixelStudio (3 permanent licences) · LCC Basic · onboarding & training
PACKAGES
What's in the box.
Not every team needs to own a scanner. Kybos captures the site and delivers the browser-shareable 3D, with no hardware to buy or learn.
BEST FOR
Where it's used
​
• Surveying and mapping at 2cm absolute
• Construction verification and Scan-to-BIM
• Infrastructure: bridges, tunnels, corridors
• Facility and asset digital twins
• Mining, heritage and film / virtual production
HOW TO GET ONE
For some projects, hire is the better call than purchase. Ask about availability.
